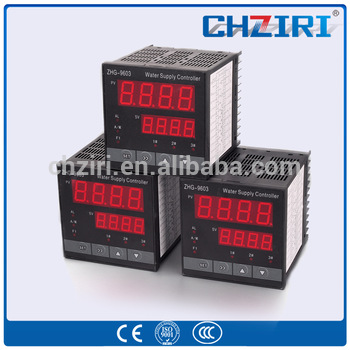

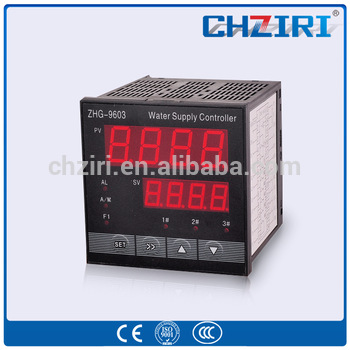

220V constant voltage water supply controller ZHG 9603

220V constant voltage water supply controller ZHG 9603

FOB Price:

Open price

Min.Order Quantity:

10 Piece/Pieces

Supply Ability:

10000 Piece/Pieces per Month

Port:

Shanghai / Ningo port

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

CHZIRI

Products Model:

ZHG-9603

Products Details
Company Profile

Quick Details

Brand Name: CHZIRI

Model Number: ZHG-9603

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: 7 DAYS
Delivery Detail: --

Specifications

1.1 Main functional features

1.1.1 Including 3 sets of main pumps & a set of small pump, it has multiple controlling modes that products meet all kinds of complex requests of water supply.

1.1.2 It is owned time function in changing pump so that pumps working time to be in balance and the life of pumps to be extending.

1.1.3 It not only has 8 periods of pressure control but arbitrary pressure setting and time & power on-off function in each period as well.

1.1.4 Sleep function and auxiliary small pump function, save enery and reduce the cost, extend machine’s life.

1.1.5 It has Negative and positive feedback function to be used in supplying and also pumping water in order to maintain the water level.

1.1.6 It has over-pressure, low water-level, sensor breaks, VFD fault alarm functions etc.

1.1.7 Feedback can connect to passive remote pressure gauge, active voltage and current types of transmitter.

1.1.8 Feedback components’ power of 0-24V can be modified, more universality.

1.1.9 Feedback signals can be selected, it is more convenient to connect with outer.

1.1.10 Standard of 0-10V output voltage, or it can be change to any voltage values, more flexible.

1.1.11 If inverter faults, you can choose auto-transfer frequency to work.

1.1.12 Relay fault output function is optional.

1.1.13 Strong adaptability, it is suitable to all kinds of different brand inverter.

1.1.14 Digital signal use photoelectric isolation.

1.1.15 With complete key function.

Program	Description of Program
Input power specification	Single phase 220VAC±15%, 50Hz/60Hz
Digital input signal	Level signal,low level is actual,5mA
Digital output signal	Max load currentI≤50mA
DC output power 1	5V/100mA,10V/50mA,24V/30mA
DC output power 2	10V/10mA,
Reply’s output signal	Contact rating:250VAC/3A,30VDC/1A
Analog input signal	10V/10bit
Analog output signal	10V/10bit
Environment Temperature	-10~+50°C
Humidity	20~90%RH,No condensation of water droplets
Vibration	< 0.5G
External dimension(WHT)	96mm96mm110mm
